ENGINE, HONDA 630

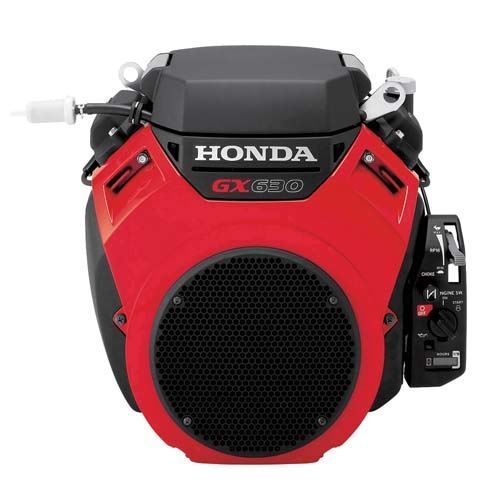

Honda GX630 engine only.

Specs:

• Engine Type Air-cooled 4-stroke OHV
• Bore x Stroke 78 X 72 mm
• Displacement 688 cm3
• Up to 20 hp (15.5 kW) @ 3,600 rpm
• Up to 35lbs ft (48.3 Nm) @ 2,500 rpm

SMOOTH PERFORMANCE

• Integrated cylinder and head
• Racing inspired forged steel connecting rod
• Dual cylindrical air filter
• Large diameter air intake for superior cooling
• 3-Year Limited Warranty

EMISSIONS COMPLIANT

• CARB and EPA certified
• No catalyst necessary

UEL EFFICIENT OPERATION

• Fuel economy is similar to fuel injection, with the simplicity of carburetion.
• Digital CDI ignition system with variable timing
• Includes a rev limiter to protect against damage from over-revving.
• Two barrel inner-vent carburetor for more precise fuel metering
• Insert style rod bearings
